The Gaspereau Cottage – 806 sq. ft.

$325.00$375.00

The Gaspereau Cottage floor plan has an 18 x 23′ footprint, with a total living area of 806 sq. ft..

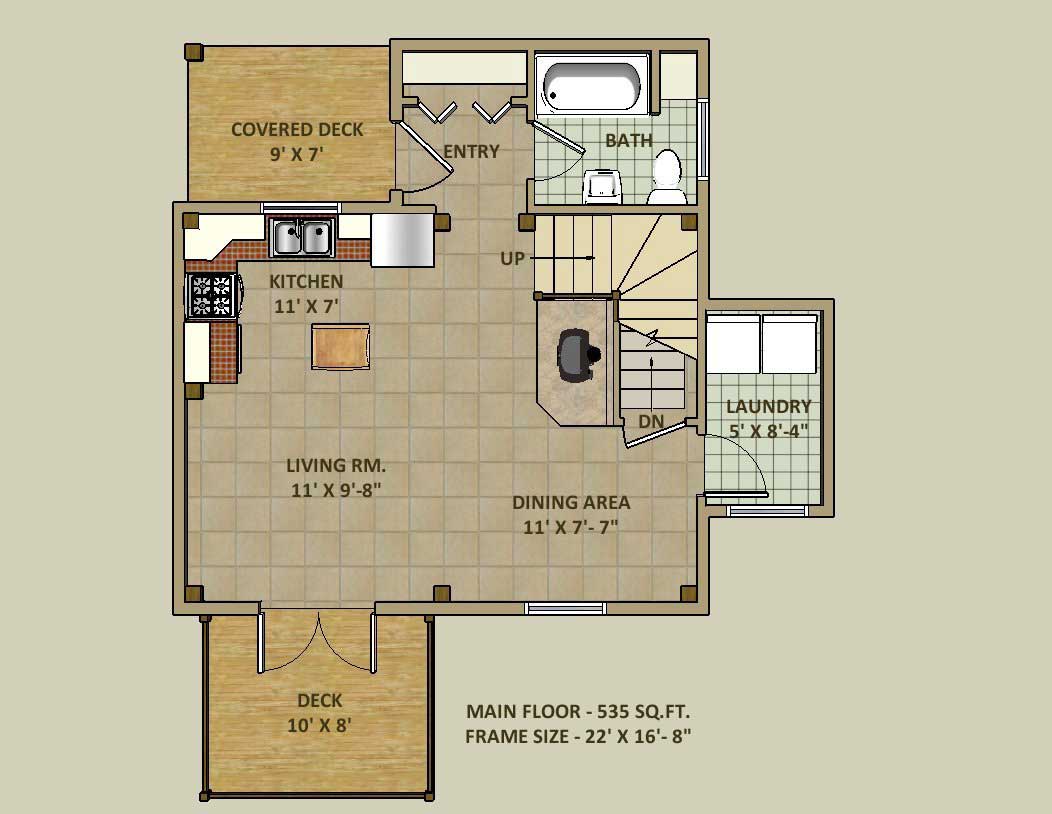

The open concept living area downstairs has a comfortable living area with room for a woodstove, an efficient kitchen and a dining area. There is a full bath on the main floor, as well as an entry with a closet, and a utility room.

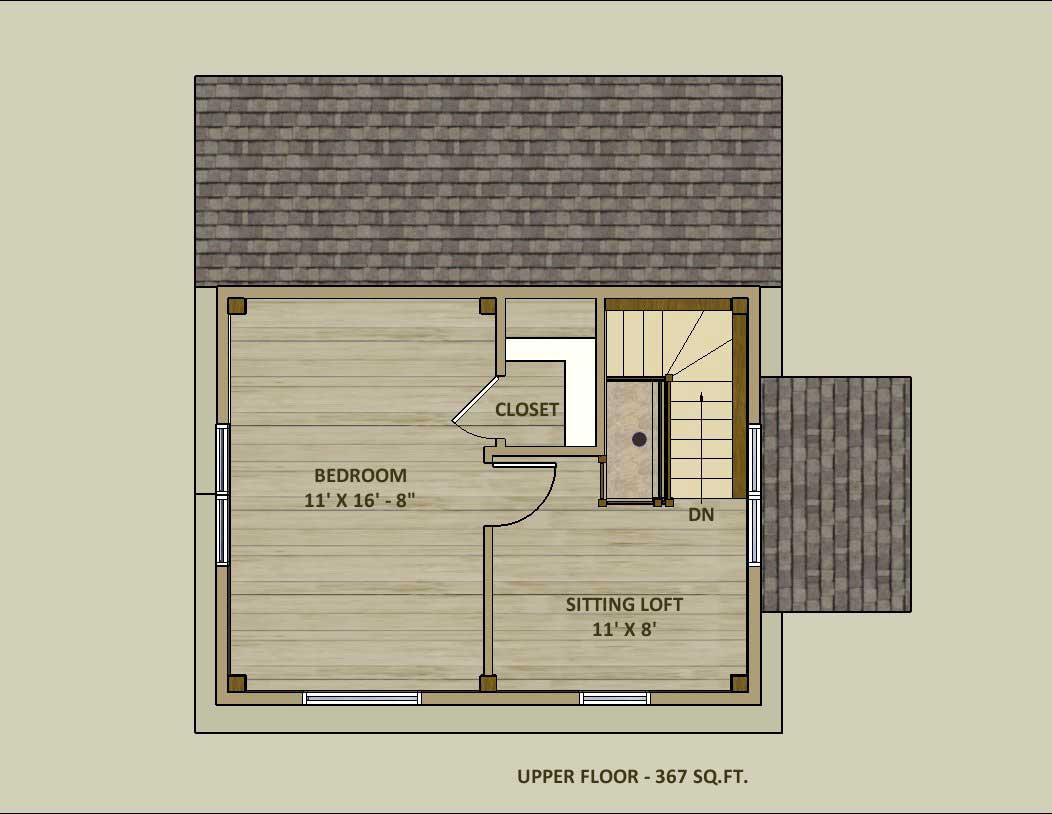

Upstairs there is a bedroom and a loft area at the top of the stairs, which could be used as an office or hobby area.

Frame size: 23′ x 18″.
Main floor: 477 sq. ft.
Total living area: 806 sq.ft.

Clear

Description



Your Package Contains:

  • Working Prints
    Floor plans, foundation plan, roof plan, sections, elevations, window & door schedules and construction details.

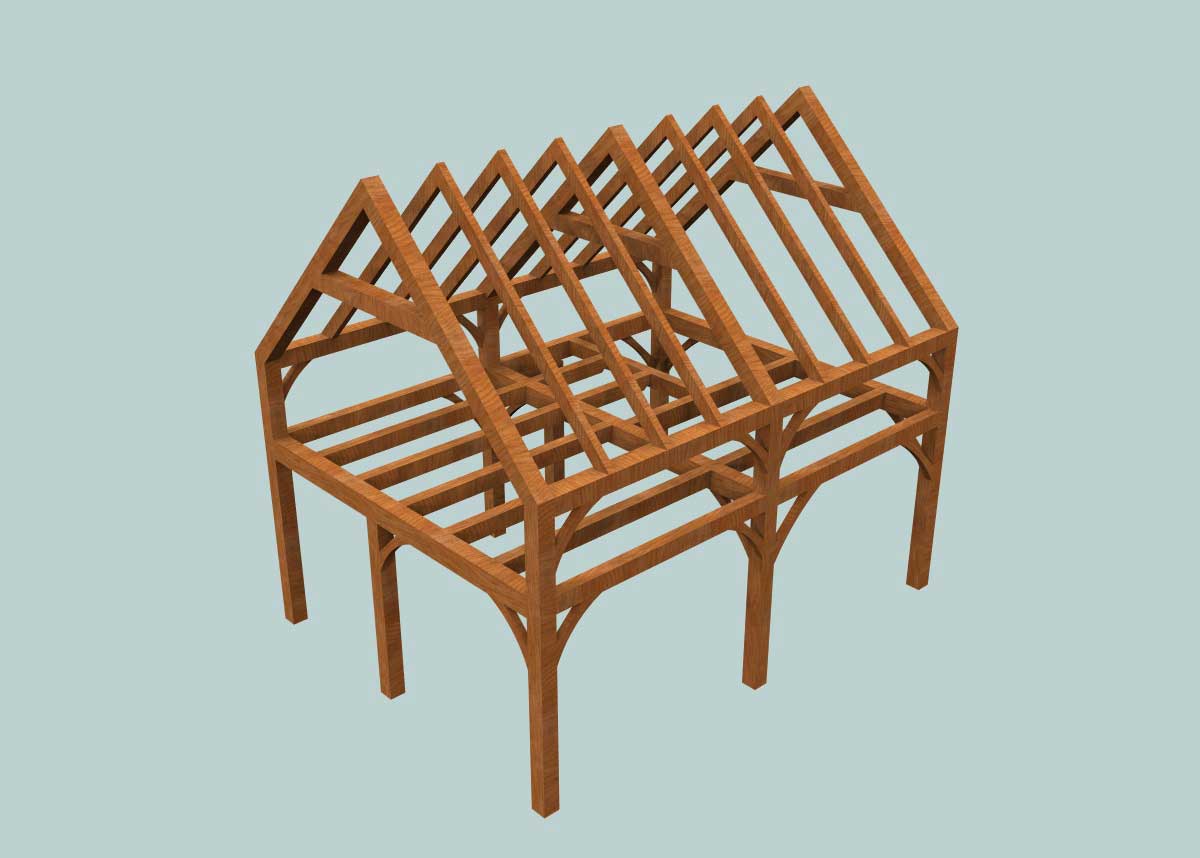

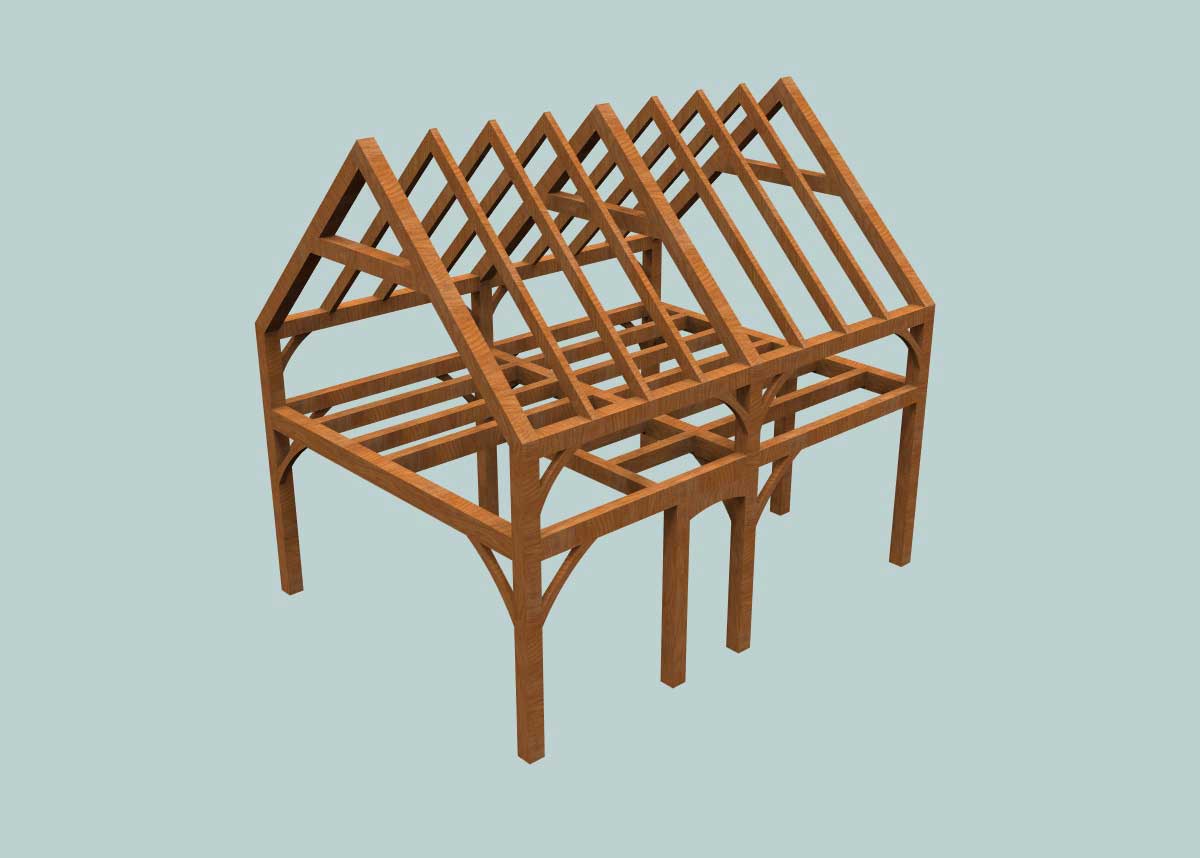

  • Timber Frame Plans
    Roof plan (plan view of roof framing), 2nd floor framing, timber elevations, timber bent drawings (sections) and timber sizings.

Additional information

Format

Paper plans (11"x17"), Digital files A3 (11"x17"), Digital files D (24"x36")
